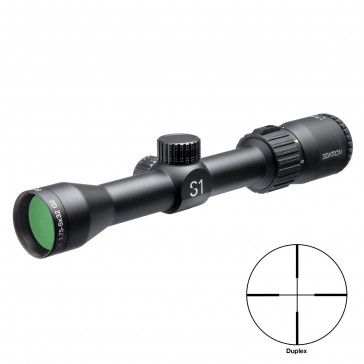

Sightron - S1 1.75-5X32 G2 - Duplex Reticle

Be the first to review this product


  • NEW Optical Design for Close Range Hunting

  • Compact, Lightweight 1-inch Aircraft Aluminum Tube

  • Waterproof, Shockproof & Fogproof Design

  • Classic Duplex Reticle Design

  • Backed by Sightron’s Lifetime Performance Guarantee

Availability: Pre Order

$358.99
Sightron

Product Description

Details

DESCRIPTION

Sightron engineers sought to create the perfect close-range hunting riflescope when designing the Sightron S1 1.75-5x32mm G2 riflescope. Using modern optical designs and manufacturing techniques, the S1 1.75-5x32mm G2 provides clear and sharp views in just about any lighting due to Sightron’s all-glass lenses and exclusive MC-333 lens coatings. Sightron’s Precision Focus Eyepiece provides a customizable sight picture with extended eye relief. A compact, lightweight 1-inch aircraft aluminum tube houses an all-new erector tube system which is nitrogen charged, O-ring sealed, providing IPX7 waterproof and fogproof performance, and construction is 1,000G rated shockproof. All of this provides the ability to take the hunt to the field earlier and later than ever and handle whatever obstacles Mother Nature throws at you.

The Sightron S1 1.75-5x32mm G2 includes the following:

Scope
Instruction Manual
Set of Lens Covers
Lens Cleaning Cloth

Features

Exclusive Optical Design

Using the right materials for the right applications, Sightron engineers build optical formulas around the best optical glass to reduce chromatic aberrations, improve color accuracy, while delivering excellent light transmission and best-in-class resolution and sharpness.

Exclusive MC-333 Multi-Coating

Sightron’s exclusive MC-333 multi-coated glass lenses provide clear and sharp viewing at any zoom range, while reducing flare, increasing contrast and light transmission providing additional time in the field.

Second Focal Plane Reticle

The reticle size remains constant at any zoom range.

Reticle Material

Wire reticle.

Shockproof

1,000G Shock rating supports even the highest calibers.

Waterproof

Rated at IPX7 waterproof standards.

Fogproof

Nitrogen gas charged for a lifetime of fog free use.

Tube Construction

Milled from a single piece of lightweight, aircraft grade aluminum.


Specification
Magnification 1.75x5
Objective Lens Diameter 32mm
Eye Relief 3.4 in - 3.3 in
Field of View 71.2 ft - 24.1 ft @ 100 yards
Tube Size 1 inch
Turret Style Capped Hunting
Zero Stop No
Click Value 1/4 MOA
Minutes Per Revolution 15 MOA
Max Elevation Adjustment 125 MOA
Max Windage Adjustment 125 MOA
Parallax Setting Parallax Free (100 Yards)
Focus Type Fixed
Reticle Type Duplex
Focal Plane Second Focal Plane
Illumination No
Finish Matte Black
Waterproof Yes - IPX7 rated
Anti-Reflection Tech MC-333 Multi-Coatings
Fog Proof Yes
Length 10.3 inches
Weight 12.7 ounces
Sunshade Not Included
Item Number 32000
UPC Code 793139320001
Model Name S1 1.75-5x32 G2 Duplex
Instruction Manual (PDF) DOWNLOAD
Reticle Instructions (PDF) N/A
Reticle Details

Duplex Reticle

The duplex reticle is the oldest and most popular reticle for hunting in the world. The reticle features thick bars on the vertical and horizontal plane which taper to a thinner section as the near the center intersection of the center of the scope.  There are many variations to the design and can be used in ranging game at hunting distances.

Duplex Measured in MOA - 1.75x at 100 yards
A B C
68.75 1.37 4.57



Duplex Measured in MOA - 5x at 100 yards
A B C
24 0.48 1.6



Scope Dimensions

S1 1.75-5X32 G2 DUPLEX

sightron rifle scope dimensions graphic

Dimensions in Inches
A B C D E F G H
10.3 5.1 1.8 2 3.6 1.6 1.5 1.7
