Product Description
Details
DESCRIPTION

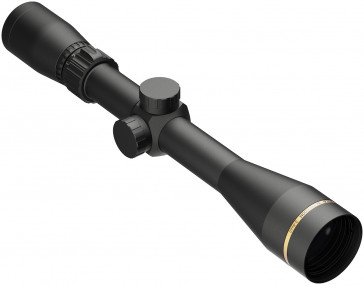

Shooting rimfire is arguably the most fun you'll have with a gun in your hand. So it makes sense to use a dedicated scope to get the most out of the experience. The Leupold® VX®-Freedom® 3-9x40mm rimfire scope features a 60-yard focus setting, an extremely popular 3-9 magnification range, and our unique Rimfire MOA reticle that's guaranteed to take your plinking to the next level.
Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
DIMENSIONS
A Total Length (in) - A | 12.49 |
---|---|
B Total Mounting Space (in) - B | 5.39 |
C Front Mounting Space (in) - C | 2.32 |
D Rear Mounting Space (in) - D | 1.85 |
E Eyepiece Length (in) - E | 3.5 |
F Objective Length (in) - F | 3.6 |
G Objective Diameter (in) - G | 1.83 |
H Eyepiece Diameter (in) - H | 1.56 |
K Maintube Diameter (mm/in) - K | 1 Inch |
SPECIFICATIONS
Adjustable Objective | No |
---|---|
Side Focus | No |
Reticle Focal Plane | Second Focal Plane |
Elevation Adjustment Type | Finger Click |
Locking Dial | No |
Revolution Indicator | No |
Rezero Type | Resettable Index Ring |
Windage Adjustment Type | Finger Click |
Custom Dial System (CDS) | No |
Custom Dial Compatible | No |
BDC Dial Included | No |
Reticle Type | Second Focal Plane |
Reticle | Hunt-Plex |
Magnification Type | Variable |
Illuminated | No |
Nightvision Compatible Illumination | No |
Daylight Bright Illumination | No |
Motion Sensor Technology (MST) | No |
Electronic Reticle Level | No |
Guard-ion Lens Coating | No |
Weight (oz) | 12.2 |
Elevation Adjustment Value per Click | 1/4MOA |
Elevation Adjustment Range (MOA) | 60 |
Elevation Adjustment Range (MIL) | 17 |
Elevation Adjustment Range (cm @ 100m) | 175 |
Elevation Adjustment Per Revolution | 15 MOA |
Elevation Dial Travel Limit | Total Scope Travel |
Windage Adjustment Value per Click | 1/4MOA |
Windage Adjustment Range (MOA) | 60 |
Windage Adjustment Range (MIL) | 17 |
Windage Adjustment Range (cm @ 100m) | 175 |
Windage Adjustment Per Revolution | 15 MOA |
Magnification Max | 9 |
Magnification Min | 3 |
Objective Lens Diameter (mm) | 40 |
Linear FOV Low Mag (ft@100yds) | 33.1 |
Linear FOV High Mag (ft@100yds) | 13.6 |
Angular FOV Low Mag (Degrees) | 6.3 |
Angular FOV High Mag (Degrees) | 2.6 |
Eye Relief Low Mag (in) | 4.2 |
Eye Relief High Mag (in) | 3.7 |
Fixed Parallax-Free Distance (yd) | 150 |
DETAILED RETICLE INFO
HUNT-PLEX
DOWNLOAD PDF- Bold, tapered pickets with open center
- Easy to find aiming point in low-light conditions
- Fine line center for precision aiming at long distances or small targets
- Top line tapers downward slightly with no picket, keeping the field of view clear and supporting precision aiming and low-light visibility
