DESCRIPTION

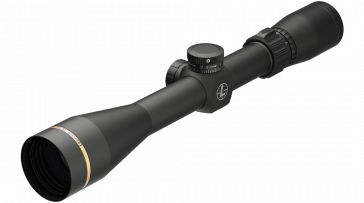

Simplicity meets accuracy in one easy-to-use package. Make short work out of long-range shots with our VX®-Freedom® 3-9x40mm, equipped with the Leupold® Custom Dial System® (CDS). This system is easy to install and even easier to use. Just provide us with your specific ballistics, and we make you a custom dial that eliminates the need for holdovers. Simply range your target, dial the distance, and aim dead on.
Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
DIMENSIONS
| A Total Length (in) - A | 12.49 |
|---|---|
| B Total Mounting Space (in) - B | 5.39 |
| C Front Mounting Space (in) - C | 2.32 |
| D Rear Mounting Space (in) - D | 1.85 |
| E Eyepiece Length (in) - E | 3.5 |
| F Objective Length (in) - F | 3.6 |
| G Objective Diameter (in) - G | 1.83 |
| H Eyepiece Diameter (in) - H | 1.56 |
| K Maintube Diameter (mm/in) - K | 1 Inch |
| Adjustable Objective | No |
|---|---|
| Side Focus | No |
| Elevation Adjustment Type | CDS |
| Locking Dial | No |
| Revolution Indicator | No |
| Rezero Type | Set Screw |
| Windage Adjustment Type | Finger Click |
| Custom Dial Compatible | Yes |
| BDC Dial Included | No |
| Reticle Type | Second Focal Plane |
| Reticle | Duplex |
| Magnification Type | Variable |
| Illuminated | No |
| Nightvision Compatible Illumination | No |
| Daylight Bright Illumination | No |
| Motion Sensor Technology (MST) | No |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Weight (oz) | 12.2 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 60 |
| Elevation Adjustment Range (MIL) | 17 |
| Elevation Adjustment Range (cm @ 100m) | 175 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | 14MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 60 |
| Windage Adjustment Range (MIL) | 17 |
| Windage Adjustment Range (cm @ 100m) | 175 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 9 |
| Magnification Min | 3 |
| Objective Lens Diameter (mm) | 40 |
| Linear FOV Low Mag (ft@100yds) | 33.1 |
| Linear FOV High Mag (ft@100yds) | 13.6 |
| Angular FOV Low Mag (Degrees) | 6.3 |
| Angular FOV High Mag (Degrees) | 2.6 |
| Eye Relief Low Mag (in) | 4.2 |
| Eye Relief High Mag (in) | 3.7 |
| Fixed Parallax-Free Distance (yd) | 150 |
- Invented in 1962 by Leupold®
- Defined by heavy posts
- Stands out against cover in low light
- Quick target acquisition with thin lines at the center
- Most popular reticle in the world
- Rear (second) focal plane
