Product Description
Details
DESCRIPTION

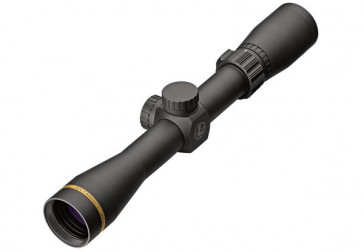

Spending the day plinking with your favorite rimfire gun and a good group of friends may be the true American pastime. The Leupold® VX®-Freedom® 2-7x33mm Rimfire scope gives you a 60-yard focus distance and a rimfire-specific Rimfire MOA reticle to keep that smile on your face the whole day.
Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
PRODUCT FEATURES
3:1 ZOOM RATIO
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
ADVANCED OPTICAL SYSTEM
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
SECOND FOCAL PLANE
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
SCRATCH RESISTANT LENSES
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
WATERPROOF, FOGPROOF, & SHOCKPROOF
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
DIMENSIONS
| A Total Length (in) - A | 11.04 |
|---|---|
| B Total Mounting Space (in) - B | 4.81 |
| C Front Mounting Space (in) - C | 1.74 |
| D Rear Mounting Space (in) - D | 1.85 |
| E Eyepiece Length (in) - E | 3.5 |
| F Objective Length (in) - F | 2.73 |
| G Objective Diameter (in) - G | 1.56 |
| H Eyepiece Diameter (in) - H | 1.56 |
| K Maintube Diameter (mm/in) - K | 1 Inch |
SPECIFICATION
| Adjustable Objective | No |
|---|---|
| Side Focus | No |
| Elevation Adjustment Type | Finger Click |
| Locking Dial | No |
| Revolution Indicator | No |
| Rezero Type | Resettable Index Ring |
| Windage Adjustment Type | Finger Click |
| Custom Dial System (CDS) | No |
| Custom Dial Compatible | No |
| BDC Dial Included | No |
| Reticle Type | Second Focal Plane |
| Reticle | Rimfire MOA |
| Magnification Type | Variable |
| Illuminated | No |
| Nightvision Compatible Illumination | No |
| Daylight Bright Illumination | No |
| Motion Sensor Technology (MST) | No |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Weight (oz) | 11.1 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 75 |
| Elevation Adjustment Range (MIL) | 22 |
| Elevation Adjustment Range (cm @ 100m) | 218 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | Total Scope Travel |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 75 |
| Windage Adjustment Range (MIL) | 22 |
| Windage Adjustment Range (cm @ 100m) | 218 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 7 |
| Magnification Min | 2 |
| Objective Lens Diameter (mm) | 33 |
| Linear FOV Low Mag (ft@100yds) | 43.8 |
| Linear FOV High Mag (ft@100yds) | 29.8 |
| Angular FOV Low Mag (Degrees) | 8.4 |
| Angular FOV High Mag (Degrees) | 5.7 |
| Eye Relief Low Mag (in) | 4.2 |
| Eye Relief High Mag (in) | 3.7 |
| Fixed Parallax-Free Distance (yd) | 60 |
DETAILED RETICLE INFO
