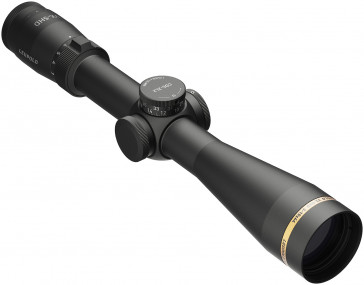

Leupold - VX-5HD 3-15X44 CDS-ZL2 SIDE FOCUS WIND-PLEX

Be the first to review this product

The VX®-5HD 3-15x44mm is made for anything and everything. Its 3-15 magnification range lets you take full advantage of any situation. Turn the power down to 3 for thick timber hunting, crank it up to 15 for your trek across the open plains, or go anywhere in-between.

Only 2 left

Availability: Shipping time varies, comfirmed upon order.

$1,784.99
leupold

Product Description

Details

DESCRIPTION

The VX®-5HD 3-15x44mm is made for anything and everything. Its 3-15x magnification range lets you take full advantage of any situation. Turn the power down to 3x for thick timber hunting, crank it up to 15x for your trek across the open plains, or go anywhere in-between. This scope has the versatility to dominate them all.

The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation that the CDS® ZeroLock® 2 dial delivers.

As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

PRODUCT FEATURES

5:1 ZOOM RATIO
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.

SECOND FOCAL PLANE
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.


PROFESSIONAL-GRADE OPTICAL SYSTEM
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.

CDS-ZL2 ELEVATION DIAL
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.

CUSTOM DIAL COMPATIBLE
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

ZERO LOCK DIAL
The ZeroLock® system eliminates accidental dial movement by locking it in place.

ZERO STOP
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.

SIDE FOCUS
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.

GUARD-ION
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.

WATERPROOF, FOGPROOF, & SHOCKPROOF
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
DIMENSIONS

A Total Length (in) - A 13.5
B Total Mounting Space (in) - B 5.4
C Front Mounting Space (in) - C 1.3
D Rear Mounting Space (in) - D 2.6
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 4.8
G Objective Diameter (in) - G 2.1
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 30 mm

SPECIFICATION
More Information
Adjustable Parallax Side Focus
Adjustable Objective No
Elevation Adjustment Type CDS-ZL2
Locking Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Pop-Up Rezero
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Type Second Focal Plane
Reticle Wind-Plex
Magnification Type Variable
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Weight (oz) 19.7
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 75
Elevation Adjustment Range (MIL) 22
Elevation Adjustment Range (cm @ 100m) 218
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 75
Windage Adjustment Range (MIL) 22
Windage Adjustment Range (cm @ 100m) 218
Windage Adjustment Per Revolution 15 MOA
Magnification Max 15
Magnification Min 3
Objective Lens Diameter (mm) 44
Linear FOV Low Mag (ft@100yds) 38.3
Linear FOV High Mag (ft@100yds) 7.7
Angular FOV Low Mag (Degrees) 7.3
Angular FOV High Mag (Degrees) 1.5
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50

DETAILED RETICLE INFO

WIND-PLEX

  • Expands on the Duplex® reticle
  • Aides in compensating for crosswinds
  • 1 MOA is approximately 1 inch at 100 yards
  • Hash marks are in 1 MOA increments
  • Marks extend to 10 MOA on each side
  • Can be used with any caliber round
  • Best utilized with our CDS® (Custom Dial System®)
  • Rear (second) focal plane
