DESCRIPTION

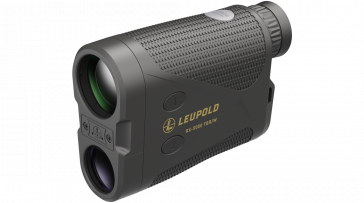

The RX-5000 TBR/W is the rangefinder for the modern hunter. With an impressive 5,000-yard ranging capability, this optic ensures precise shots every time. But what really sets it apart is its integration with the Leupold Control app, allowing you to remotely drop location pins to your phone using digital maps like onX Hunt.
Along with its pinning feature, the RX-5000 TBR/W includes our popular True Ballistic Range (TBR) mode, which provides custom readings based on distance, angle, and your bullet's characteristics. Without it, you could miss your targets by almost a full 15 inches.
Then there's the new addition: Long Range (LONG) mode. Instead of helping you dial in your shots, this mode will help you get situated in the field. It enables you to range up to 5,000 on trees and deer-sized game, making it the perfect tool for navigating from one ridgetop to the next.
We've also outfitted this rangefinder with best-in-class 8x power, a bright red OLED display, and a waterproof housing. So whether you're scouting in springtime showers or hunting the rugged coastline of Alaska, the RX-5000 TBR/W will keep you firmly in control.
NOTICE: Changes in environmental conditions, nearby metal objects, or binocular harnesses magnets, may affect the accuracy of the RX-5000’s digital compass. To maintain accuracy, it is recommended to initiate calibration through the Leupold Control app on every outing.
CONTROL APP COMPATIBLE
TRIPOD SADDLE
LONG RANGE (LONG) MODE
LINE OF SIGHT (LOS) MODE
TBR-W
LAST TARGET
RED OLED DISPLAY
WATERPROOF AND FOGPROOF
SPECIFICATIONS
Battery Type | CR123 |
---|---|
Display Color | OLED (Red Display) |
Flightpath | No |
Magnification | 8 |
Prism Lock | No |
Rifle Angle Compensation | TBR/W |
Trophy Scale | No |
Tripod Compatible (1/4-20) | No |
True Ballistic Range (TBR) Mode | No |
Horizontal Distance (TRIG-H) | No |
Archer's Advantage | No |
Bow Mode | No |
True Golf Range (TGR) | No |
Length (in) | 4.4 |
Width (in) | 1.6 |
Height (in) | 3.1 |
Weight (oz) | 9.7 |
Objective Diameter (mm) | 30 |
Linear FOV (ft@1000 yd) | 289 |
Angular FOV (Degrees) | 5.5 |
Eye Relief (mm) | 17.3 |
Min Diopter (dpt) | -3 |
Max Diopter (dpt) | 3 |
Light Transmission (%) | 80 |
Battery Life (Actuations) | 3000 |
Accuracy to 125 (yd) | .5 |
Accuracy to 1000 (yd) | 2 |
Accuracy above 1000 (yd) % | .2 |
Max Range - Deer (yd) | 2000 |
Max Range - Trees (yd) | 3100 |
Max Range - Reflective (yd) | 5000 |
Min Range (yd) | 6 |
Laser Classification | Class 1M |
