Product Description
Details

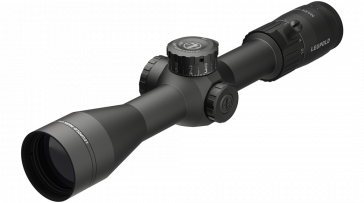

Ready your rifles with a versatile Mark 4HD. We took the legendary performance of its predecessors and gave it a slimmer maintube that’s been packed full of professional-grade features. Whether you’re a dedicated enthusiast or a seasoned expert, the Mark 4HD’s optical clarity and lightweight design will get the job done at the range or in the field.
The Mark 4HD series features five magnification ranges, providing you with an accurate and reliable option for close-quarter engagements, long-range dominance, and everything in between. They’re available with a three-turn elevation dial for unmatched confidence at extreme distances, a precise ZeroLock windage adjustment that won’t budge when knocked around, and a side focus that delivers tack-sharp images as close as 25 yards. And like all Leupold riflescopes, they’re waterproof, fogproof, and backed by our lifetime guarantee.
4:1 ZOOM RATIO
A 4:1 zoom ratio strikes the perfect balance between weight and versatility, giving you plenty of magnification options without weighing you down. Model magnification ranges are available in powers of 4x: 1-4.5, 2.5-10, 4.5-18, and 8-32.
PROFESSIONAL-GRADE OPTICAL SYSTEM
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
MOTION SENSOR TECHNOLOGY (MST)
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
WATERPROOF, FOGPROOF, & SHOCKPROOF
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
M5C3 ZEROLOCK® ADJUSTMENTS
These low-profile dials are available on select models and provide up to 30-MILs of adjustment in 3 revolutions and 0.1 MIL clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.
SIDE FOCUS
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
FIRST FOCAL PLANE
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
ELECTRONIC RETICLE LEVEL
The Electronic Reticle will flash when the scope isn't level, promoting more accurate long-range shots. It can also simplify the mounting process.
ILLUMINATED
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
NIGHTVISION COMPATIBLE ILLUMINATION
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
SPECIFICATIONS
| Badge | New |
|---|---|
| Battery Type | CR2032 |
| BDC Dial Included | No |
| Daylight Bright Illumination | No |
| Custom Dial System (CDS) | No |
| Elevation Adjustment Type | M5C3 |
| Guard-ion Lens Coating | No |
| Locking Dial | Yes |
| Magnification Type | Variable |
| Reticle Focal Plane | First Focal Plane |
| Revolution Indicator | Yes |
| Reticle | Illum. TMR |
| Rezero Type | Set Screw |
| Reticle Type | First Focal Plane |
| Adjustable Objective | No |
| Side Focus | No |
| Switch Type | Push Button |
| Windage Adjustment Type | Capped |
| Weight (oz) | 21.5 |
| Elevation Adjustment Value per Click | 0.1Mil |
| Elevation Adjustment Range (MOA) | 85 |
| Elevation Adjustment Range (MIL) | 24.7 |
| Elevation Adjustment Range (cm @ 100m) | 247 |
| Elevation Adjustment Per Revolution | 10 MIL |
| Elevation Dial Travel Limit | 30MIL |
| Windage Adjustment Value per Click | 0.1Mil |
| Windage Adjustment Range (MOA) | 85 |
| Windage Adjustment Range (MIL) | 24.7 |
| Windage Adjustment Range (cm @ 100m) | 247 |
| Windage Adjustment Per Revolution | 10 MIL |
| Magnification Max | 10 |
| Magnification Min | 2.5 |
| Objective Lens Diameter (mm) | 42 |
| Linear FOV Low Mag (ft@100yds) | 42.2 |
| Linear FOV High Mag (ft@100yds) | 11 |
| Angular FOV Low Mag (Degrees) | 8 |
| Angular FOV High Mag (Degrees) | 2.1 |
| Eye Relief Low Mag (in) | 3.6 |
| Eye Relief High Mag (in) | 3.9 |
| Fixed Parallax-Free Distance (yd) | 150 |
| Battery Life (hr), Low Intensity | 1600 |
| Battery Life (hr), Medium Intensity | 1000 |
| Battery Life (hr), High Intensity | 300 |
| Number of Illum Settings | 8 |
DIMENSIONS
| A Total Length (in) - A | 12.5 |
|---|---|
| B Total Mounting Space (in) - B | 6 |
| C Front Mounting Space (in) - C | 1.7 |
| D Rear Mounting Space (in) - D | 2 |
| E Eyepiece Length (in) - E | 3.3 |
| F Objective Length (in) - F | 3.3 |
| G Objective Diameter (in) - G | 2 |
| H Eyepiece Diameter (in) - H | 1.8 |
| K Maintube Diameter (mm/in) - K | 30 mm |
DETAILED RETICLE INFO
TMR (MK) ILLUM. FFP
DOWNLOAD PDF- Expands on existing MIL Dot reticle design
- Uses hash marks instead of dots for increased ranging and holdover precision
- Provides aiming points for both wind and bullet drop compensation
- 1 MIL is approximately 3.6 inches at 100 yards
- Hash marks are spaced 0.5 MIL apart, transitioning to 0.2 MIL spacing on the outer edges
- Not caliber specific
- Front (first) focal plane
- MIL based systems are the current military standard
