Product Description
Details

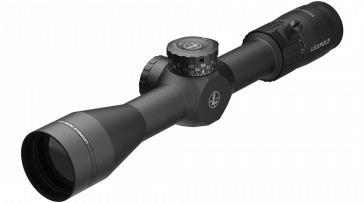

Ready your rifles with a versatile Mark 4HD. We took the legendary performance of its predecessors and gave it a slimmer maintube that’s been packed full of professional-grade features. Whether you’re a dedicated enthusiast or a seasoned expert, the Mark 4HD’s optical clarity and lightweight design will get the job done at the range or in the field.
The Mark 4HD series features five magnification ranges, providing you with an accurate and reliable option for close-quarter engagements, long-range dominance, and everything in between. They’re available with a three-turn elevation dial for unmatched confidence at extreme distances, a precise ZeroLock windage adjustment that won’t budge when knocked around, and a side focus that delivers tack-sharp images as close as 25 yards. And like all Leupold riflescopes, they’re waterproof, fogproof, and backed by our lifetime guarantee.
The Mark 4HD series features five magnification ranges, providing you with an accurate and reliable option for close-quarter engagements, long-range dominance, and everything in between. They’re available with a three-turn elevation dial for unmatched confidence at extreme distances, a precise ZeroLock windage adjustment that won’t budge when knocked around, and a side focus that delivers tack-sharp images as close as 25 yards. And like all Leupold riflescopes, they’re waterproof, fogproof, and backed by our lifetime guarantee.
The Electronic Reticle will flash when the scope isn't level, promoting more accurate long-range shots. It can also simplify the mounting process.
PROFESSIONAL-GRADE OPTICAL SYSTEM
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.
SPECIFICATIONS
| Badge | New |
|---|---|
| BDC Dial Included | No |
| Custom Dial Compatible | No |
| Daylight Bright Illumination | No |
| Custom Dial System (CDS) | No |
| Elevation Adjustment Type | M1C3 |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Illuminated | No |
| Locking Dial | Yes |
| Magnification Type | Variable |
| Nightvision Compatible Illumination | No |
| Revolution Indicator | Yes |
| Reticle | FFP PR-1MOA |
| Rezero Type | Set Screw |
| Reticle Type | First Focal Plane |
| Adjustable Objective | No |
| Side Focus | No |
| Windage Adjustment Type | Capped |
| Weight (oz) | 21 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 85 |
| Elevation Adjustment Range (MIL) | 24.7 |
| Elevation Adjustment Range (cm @ 100m) | 247 |
| Elevation Adjustment Per Revolution | 25 MOA |
| Elevation Dial Travel Limit | 71.5MOA |
| Windage Adjustment Range (MOA) | 85 |
| Windage Adjustment Range (MIL) | 24.7 |
| Windage Adjustment Range (cm @ 100m) | 247 |
| Windage Adjustment Per Revolution | 24 MOA |
| Magnification Max | 10 |
| Magnification Min | 2.5 |
| Objective Lens Diameter (mm) | 42 |
| Linear FOV Low Mag (ft@100yds) | 42.2 |
| Linear FOV High Mag (ft@100yds) | 11 |
| Angular FOV Low Mag (Degrees) | 8 |
| Angular FOV High Mag (Degrees) | 2.1 |
| Eye Relief Low Mag (in) | 3.6 |
| Eye Relief High Mag (in) | 3.9 |
| Fixed Parallax-Free Distance (yd) | 150 |
DIMENSIONS
| A Total Length (in) - A | 12.5 |
|---|---|
| B Total Mounting Space (in) - B | 6 |
| C Front Mounting Space (in) - C | 1.7 |
| D Rear Mounting Space (in) - D | 2 |
| E Eyepiece Length (in) - E | 3.3 |
| F Objective Length (in) - F | 3.3 |
| G Objective Diameter (in) - G | 2 |
| H Eyepiece Diameter (in) - H | 1.8 |
| K Maintube Diameter (mm/in) - K | 30 mm |
DETAILED RETICLE INFO
PR1-MOA
DOWNLOAD PDF- MOA based grid
- Created with input from elite shooters and hunters
- Multiple aiming points for extreme long-range shots
- 1 MOA increments
- 40 MOA of measurement in each direction
- Front (first) focal plane
